Switch Panel

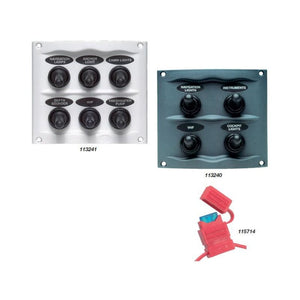

BEP Splash Proof Switch Fuse Panels

Injection moulded plastic panel with high quality two position toggle switches covered by neoprene rubber boots to provide splash proof (IP56) protection from the front face. Each pair of toggle switches is connected to a behind panel mounted AF type blade fuse (115714). Available in 4 or 6 gang versions with a choice of grey or white facia. Supplied complete with 113714 28 piece label set (refer page 144). Switches are rated to 20 amp.

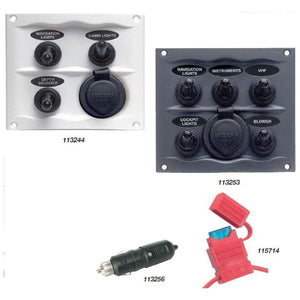

BEP Splash Proof Switch Fuse Panels - With Power Socket

Injection moulded plastic panel with high quality two position switches rated to 20 amp, covered by rubber boots and a cigarette lighter type power socket rated to 16 amp. Panel is splash proof to IP56 standard from the front face. Each pair of toggle switch/power socket is connected to a behind panel mounted AF type blade fuse holder (115714). Available in 3 or 5 gang versions with a choice of grey or white facia. Supplied complete with 113714 28 piece label set (refer page 144). Power plug is not included with the panel and is available as a separate part. Now supplied with Marinco power socket.
